12v 200AH 4000ah lifepo4 battery
12v 200AH 4000ah 24v 200AH lifepo4 battery

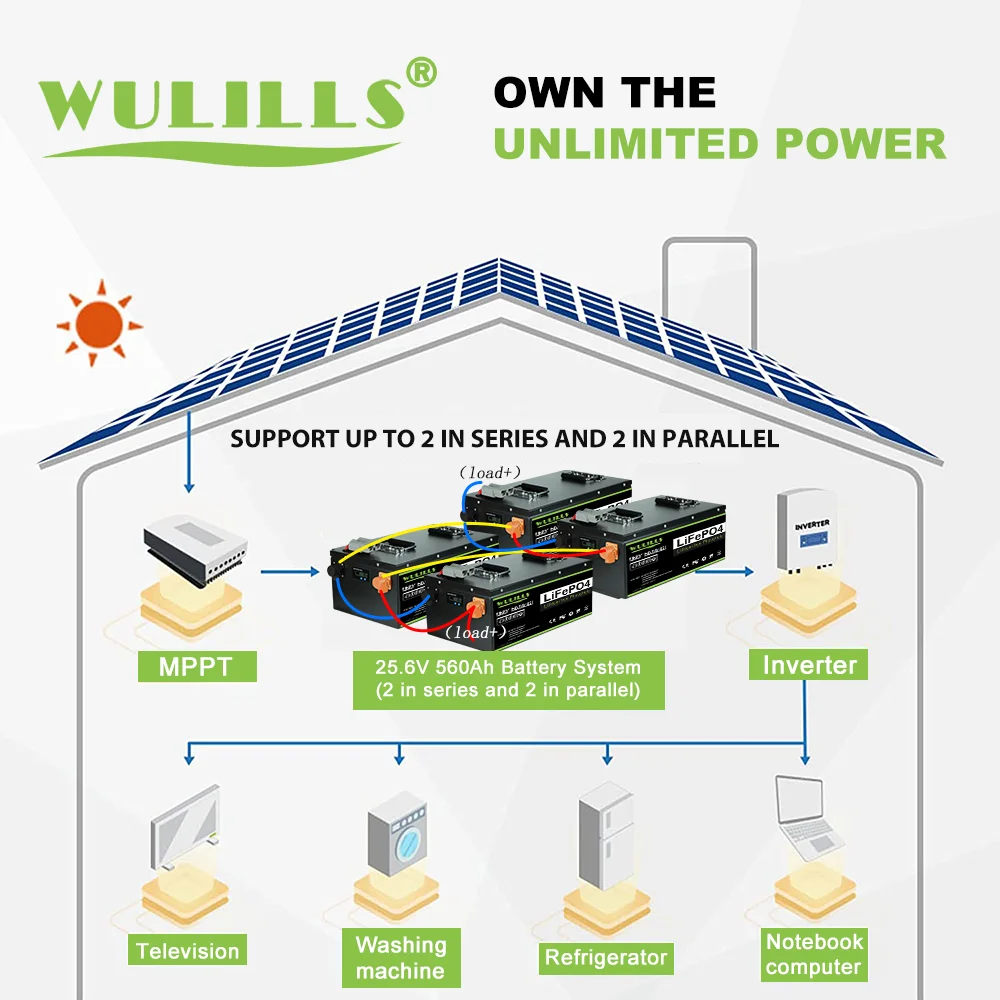

the battery support Connected in series and parallel
12V 24V 48V 100Ah 200Ah 280Ah 400Ah LiFePo4 Battery
12v 100AH 12V 200AH 12v 280AH 12V 400 AH 24V 100AH 24 200AH 48V 100AH on sale now

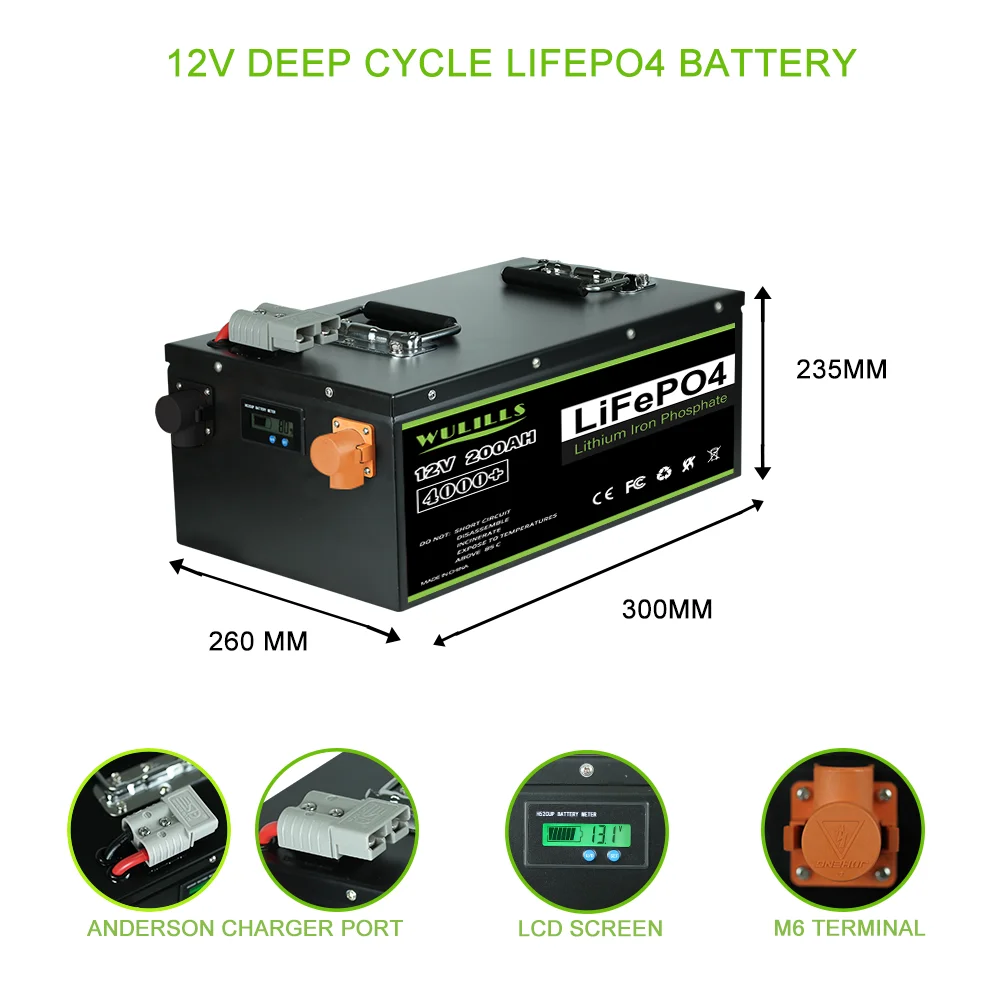

12V 200Ah Lifepo4 Battery
Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 200Ah 0.2C
Energy: 2560Wh
Cycle Life: >4000 cycles at 0.2C; End of life 70% capacity.
Months of Self Discharge: ≤3.5% per month at 25℃
Charge Voltage: 14.6±0.2V
Charger Current: 40A
Max. Charge Current: 100A
Max. Continuous Current: 150A
Max. Pulse Current: 300A(<3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 380*260*235mm /
Weight: Approx. 20kg
Terminal Type: M6
12v 280Ah Lifepo4 Battery
Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 280Ah 0.2C
Energy: 3584Wh
Cycle Life: >4000 cycles at 0.2C; End of life 70% capacity.
Months of Self Discharge: ≤3.5% per month at 25℃
Charge Voltage: 14.6±0.2V
Charger Current: 60A
Max. Charge Current: 60A
Max. Continuous Current: 280A
Max. Pulse Current: 500A(<3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 400*210*200 mm /
Weight: Approx. 29kg
Terminal Type: M6

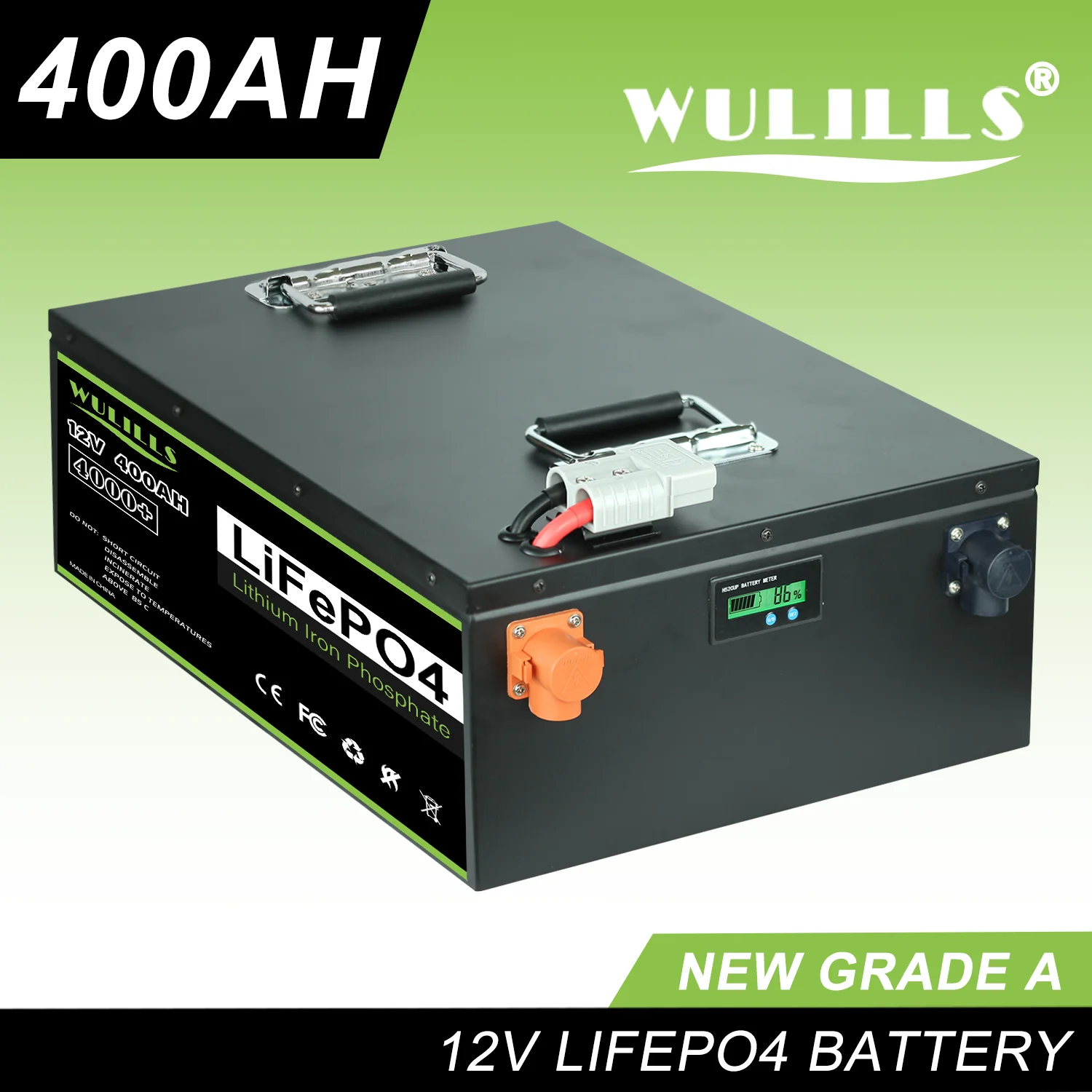

12v 400Ah Lifepo4 Battery
Specifications
Rated Capacity (0.2C): 400Ah / 5120Wh
Cycle life: 2000+ cycles at 80% discharge depth
Rated voltage: 12.8V
Charge voltage: 14.2V – 14.6V
Depth of Discharge (DoD): 100%
Standard charge current: 60A
Max charge current: 110A
Max Continuous discharge current: 150A
Peak discharge current: 750A (Duration: less than 5 seconds)
Operating temperatures: Charge 0°C~50°C(32°F~122°F),
Discharge -20°C~60°C(-4°F~140°F), Storage -20°C~50°C(-4°F~122°F)
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 450*295*140mm /
Weight: Approx. 36kg
Terminal Type: M6
24v 100AH Lifepo4 Battery
Specifications
Nominal Voltage: 25.6V
Nominal Capacity: 100Ah 0.2C
Energy: 2560Wh
Cycle Life: >4000 cycles at 0.2C; End of life 70% capacity.
Months of Self Discharge: ≤3.5% per month at 25℃
Charge Voltage: 29.2±0.2V
Charger Current: 24A
Max. Charge Current: 60A
Max. Continuous Current: 120A
Max. Pulse Current: 200A(<3S)
Discharge Cut-off Voltage: 20.0V
Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 320*155*223mm /
Weight: Approx. 22kg
Terminal Type: M6

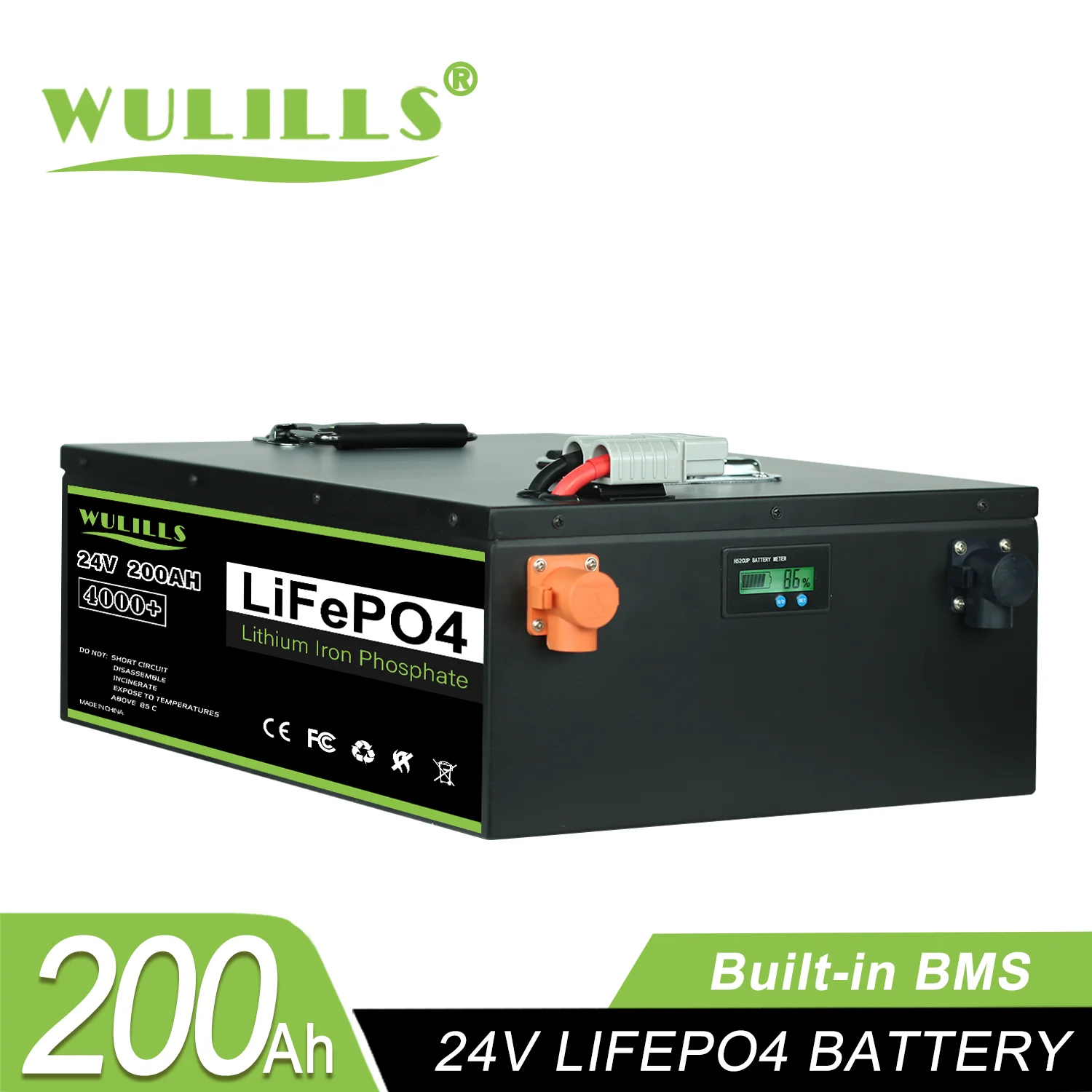

24v 200AH Lifepo4 Battery
Specifications
Size:450*295*140MM
Rated Capacity (0.2C): 200Ah / 5120Wh
Cycle life: 4000+ cycles at 80% discharge depth
Charge voltage: 28.4V – 29.2V
Depth of Discharge (DoD): 100%
Standard charge current: 50A
Max continuous charge current: 100A
Max continuous discharge current: 120A
Peak discharge current: 600A (Duration: less than 5 seconds)
Operating temperatures: Charge 0°C~50°C(32°F~122°F),
Discharge -20°C~60°C(-4°F~140°F), Storage -20°C~50°C(-4°F~122°F)
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 450*295*140
Weight: Approx. 36kg
Terminal Type: M6

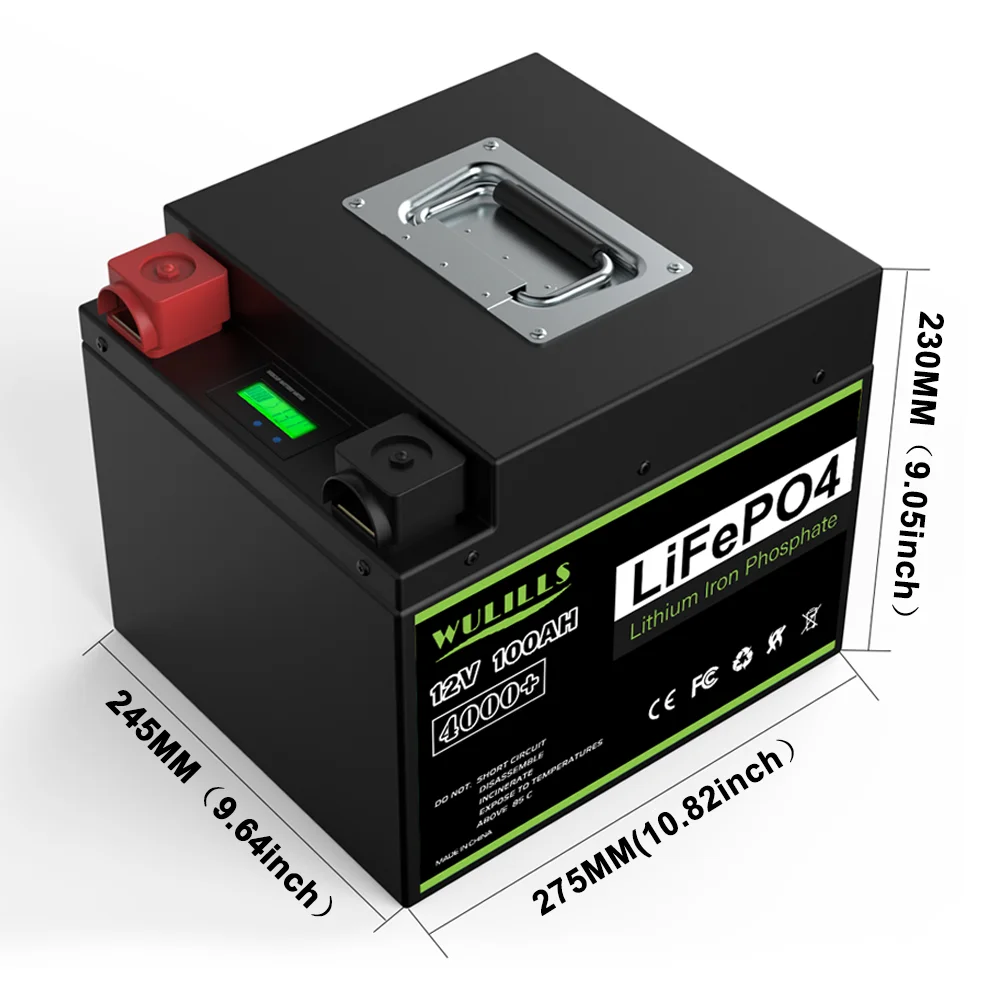

12v100AH Lifepo4 Battery
Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 100Ah 0.2C
Energy: 1280Wh
Cycle Life: >4000 cycles at 0.2C; End of life 70% capacity.
Months of Self Discharge: ≤3.5% per month at 25℃
Charge Voltage: 14.6±0.2V
Charger Current: 20A
Max. Charge Current: 50A
Discharge Current: 20A
Max. Continuous Current: 100A
Max. Pulse Current: 200A(<3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 280*280*200 mm
Weight: Approx:12kg
Terminal Type: M8
Outstanding Service and 5-years quality warranty
We are committed to providing you with satisfactory service. Professional technical support and customer service as we provide easy-to-understand operation manuals and online services with quick feedback within 24 hours. If you have any questions, please feel free to contact us, we will do our best to meet your needs.
