Features & conditions
Type:3 – 4 Person Tent
Size(attach car side*outside*high):200*300*200CM with 3m extend/ 250 *300*200CM with 3m extend
Material: 520D Oxford polyester, polyurethane impregnated
Body Fabric: 280g(GSM)/Poly, PU 3000mm,W/P,W/R
Poles
Aluminum-Alloy,1.0mm thickness.extensibleAluminum twist lock poles.The height of the poles is adjustable, it can adjustable 160cm to 200cm
Inter pole: Dia.22mm
Out Pole:Dia.15mm

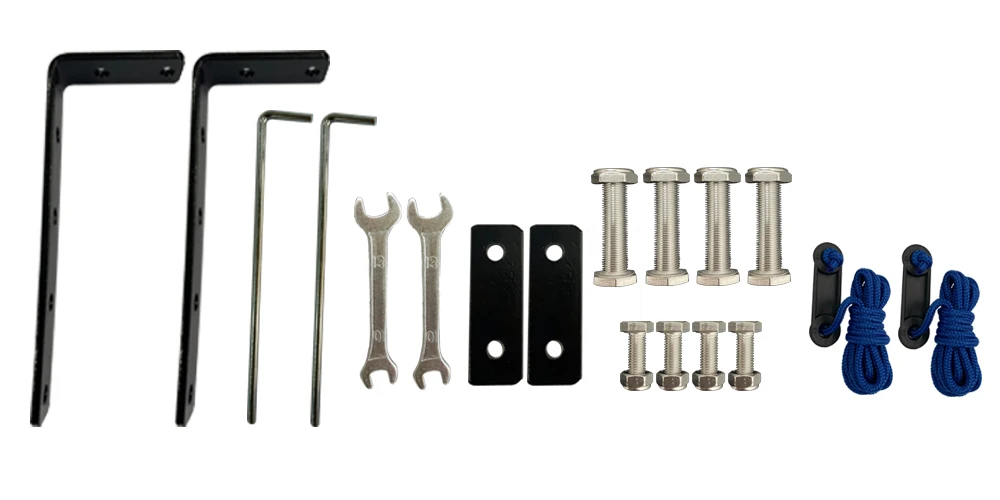

Accessories:Stainless steel rod and ropes and aluminum connectors
Feature:Suitable for all kinds of SUV, portable
Tips:
1.When the first time to open the package,screws and other gadgets roll in the car awning inside (in the aluminum slot).
Two L-type placed in the corner of the carton, protected by the cloth package.
2.When used, a total of four roads, rotate the lower half to complete the lock.
3.When windy, please be sure to use windproof rope.

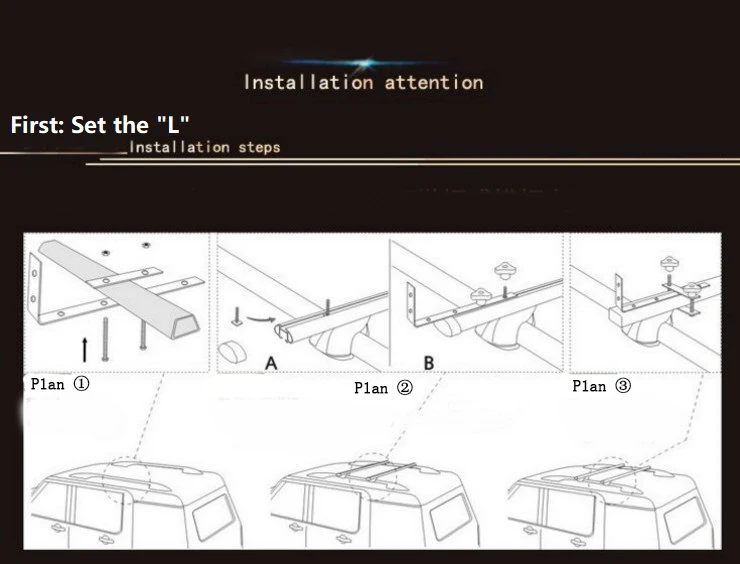

Universal brackets do not match all luggage racks. The accessories that come with the awning are suitable for the installation method of plan 1, and other plans need to purchase other accessories by yourself.

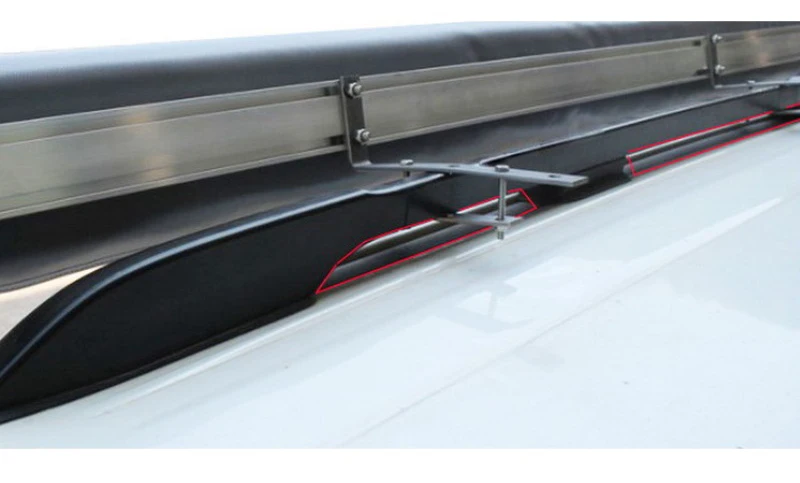

Plan 1: Installed on the longitudinal rod on the roof.

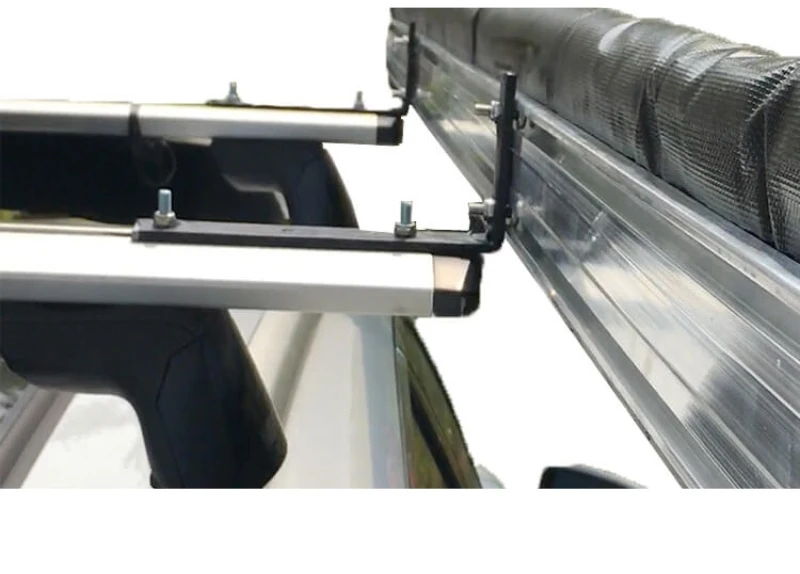

Plan 2: Installed on the crossbar on the roof. Need crossbar with T-screws.
Plan 3: Installed on the crossbar on the roof. Add purchase 2 L-shaped brackets, 6 I-shaped brackets, 4 sets of long screws, 4 sets of short screws, and you can complete the installation method of plan 3.
Plan 1 installation renderings
Plan 2 installation renderings
Plan 3 installation renderings
