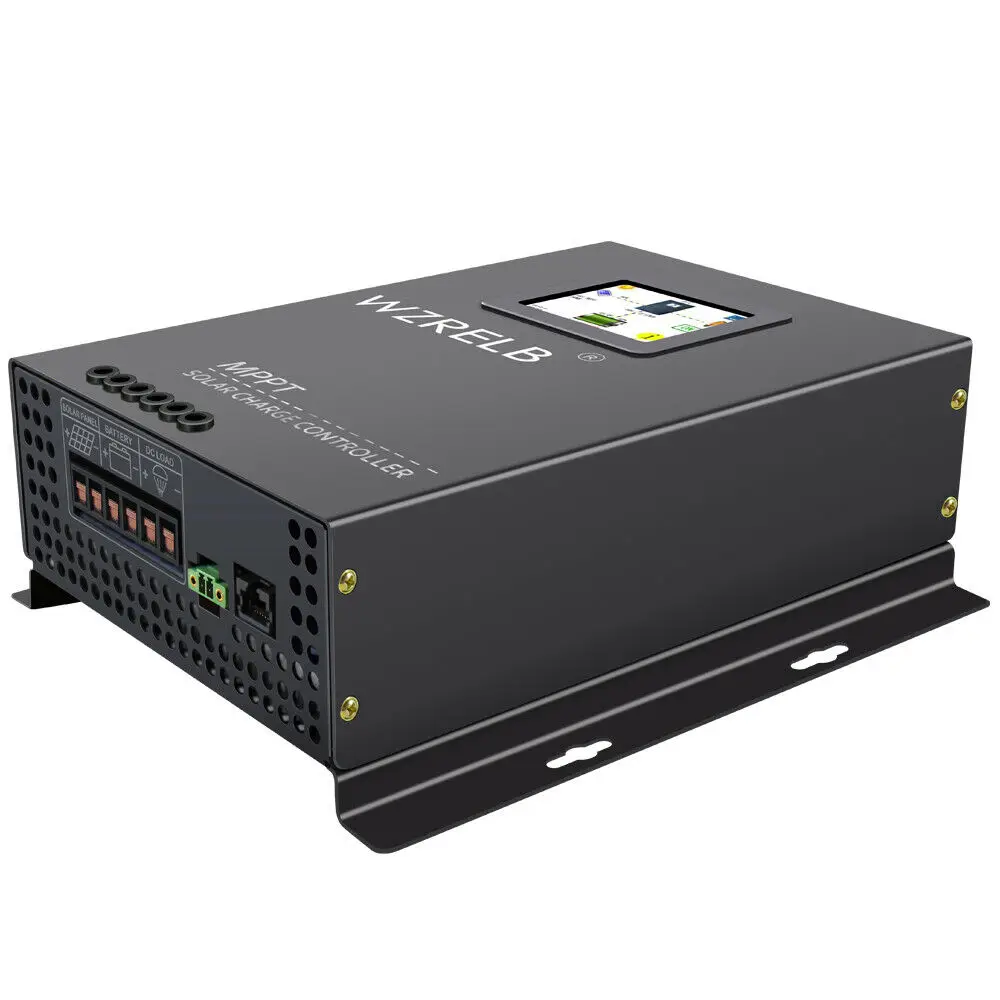

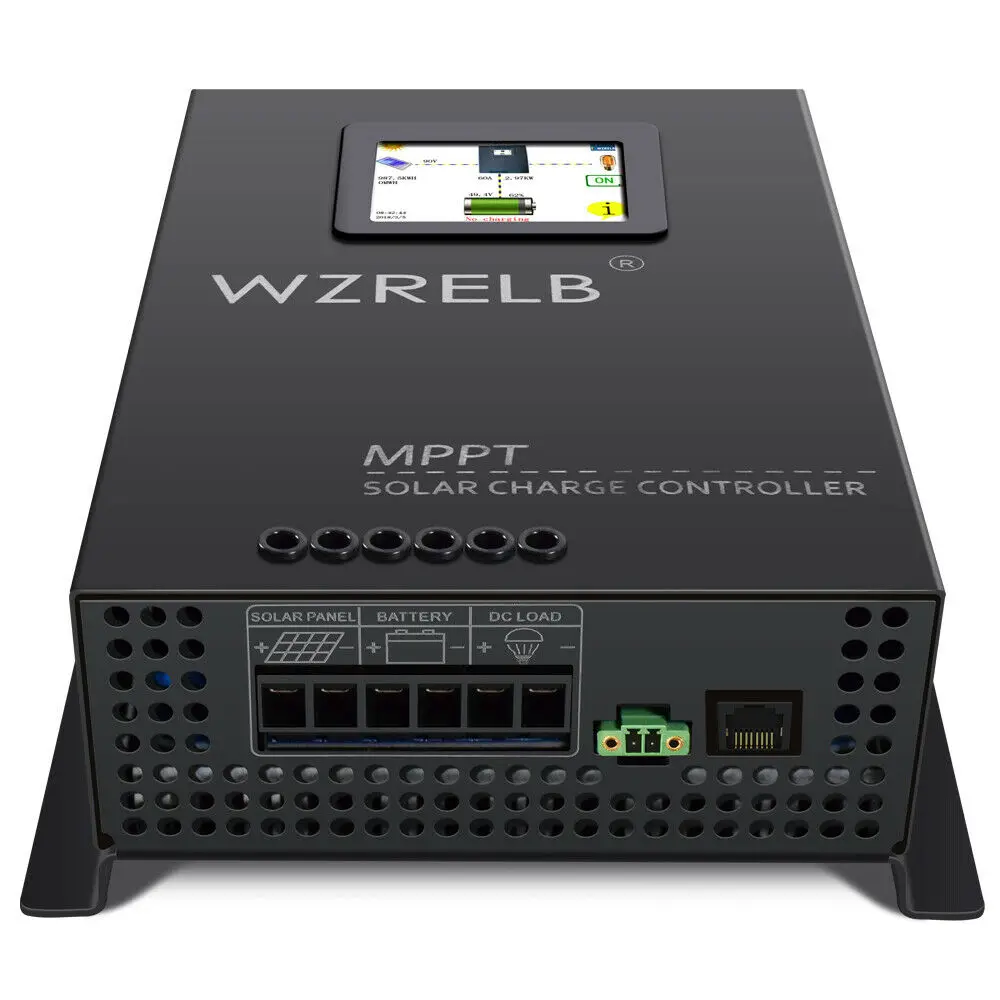

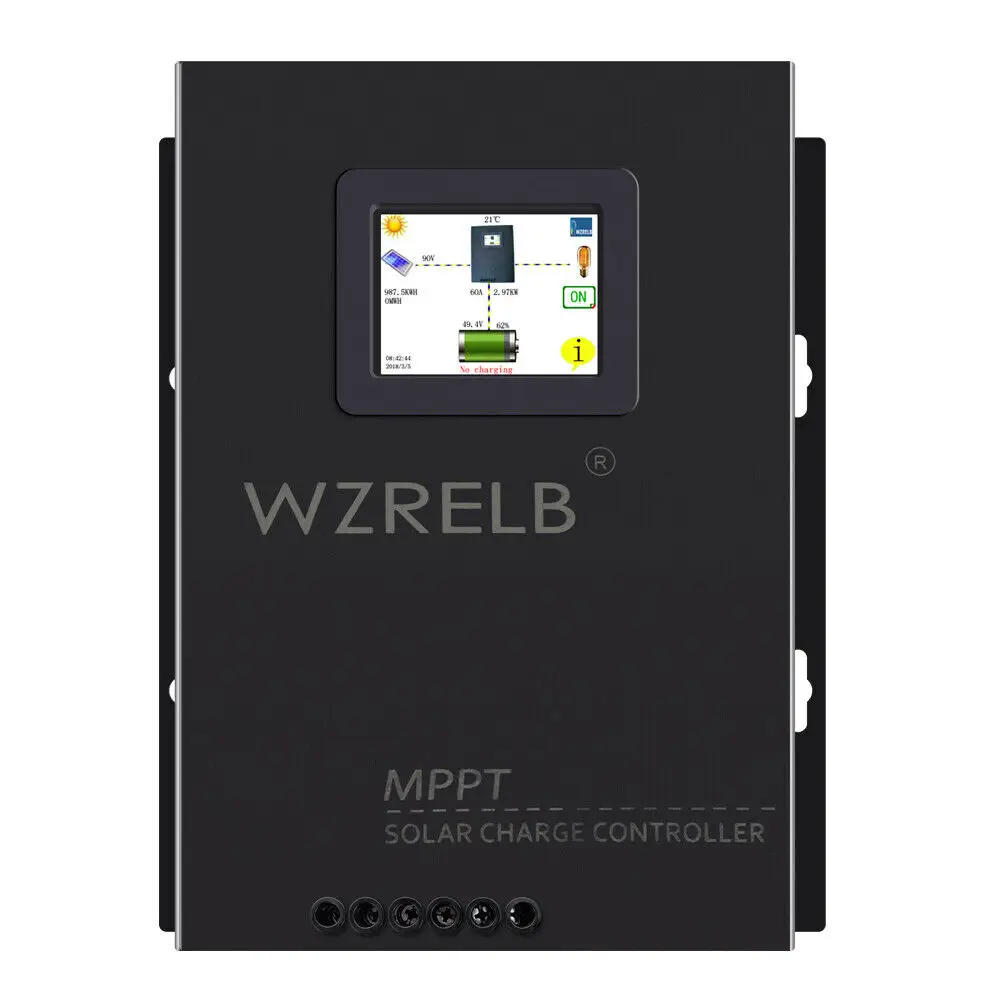

Auto Switch MPPT Solar Charge Controller 60A 18V/36V Off Grid Battery/DC Generator/ Wind/Solar System Charger

Model

TYC-60IR

Rated voltage

36V

Rated current

60A

Maximum protection current

62A

Battery voltage identification range

36V(DC30-DC60V）

MPPT Operating voltage range

36V(DC54V-150V);

Maximum PV input power

900W

1700W

3400W

PV input low voltage protection point

36V:DC60V;

PV input low pressure recovery point

36V:DC65V;

Limit input voltage

DC170V

PV input overvoltage protection point

DC175V

PV input overvoltage recovery point

DC170V

charging method

3 stage :constant currenet(MPPT),equalizing charge,float charge

System type

36V 30-60AAutomatic identify

Static power consumption

2W

Machine efficiency

96.5 %;99 %

PV module utilization

99.97%

Float voltage (can be customized)

39.9V

Equalizing charge voltage(can be customized)

43.5V

Recommended PV module voltage

36V(54V-144V)

Temperature compensation

-3mV℃/2V

Temperature protection

85℃

Temperature rise protection

80℃ or more to reduce power output

Protective function

PV array short circuit, overvoltage, overcurrent reverse polarity protection, battery overcharge, reverse protection,Under voltage protection

Working temperature

-10℃~+45℃

Humidity

0~90%RH (Not condensation)

Altitude

0~3000m

Security Level

CE, PSE, FCC, EMC

Mechanical protection class

IP21

Optional battery type

IP21

Product Size

240*200*80mm/10.2*7.6*3.1in

Weight

Weight: Approx.3450g/121.7oz
