300W 100W Foldable Solar Panel Kit 12V 24V Battery Charger Controller Portable Placa Solar Flexible Solar Panel Charger
Incl. GST
300W 100W Portable Solar Panel Kit 12V Battery Charger Controller Placa Solar Flexible Foldable Solar Panel Charger For Home RV
Features:
a.High-efficiency：Select high-efficiency monocrystalline silicon solar cells, the power generation efficiency is 1.2 times higher than that of conventional polycrystalline.
b. Advanced technology: Using the second-generation component packaging process, it is thinner, lighter, softer and has a longer life.
c. Waterproof: The surface is made of PET material, which is treated with special technology to make it more wear-resistant and improve the absorption efficiency of sunlight.
d. Safety: It has high light transmittance, is safe and reliable, and has no danger of burning or explosion.

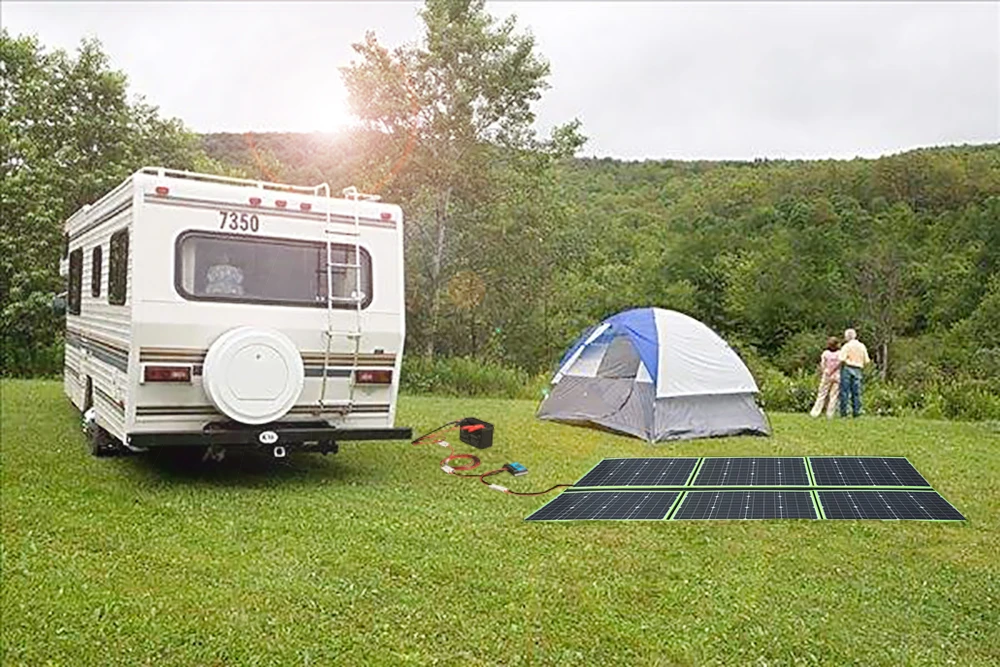

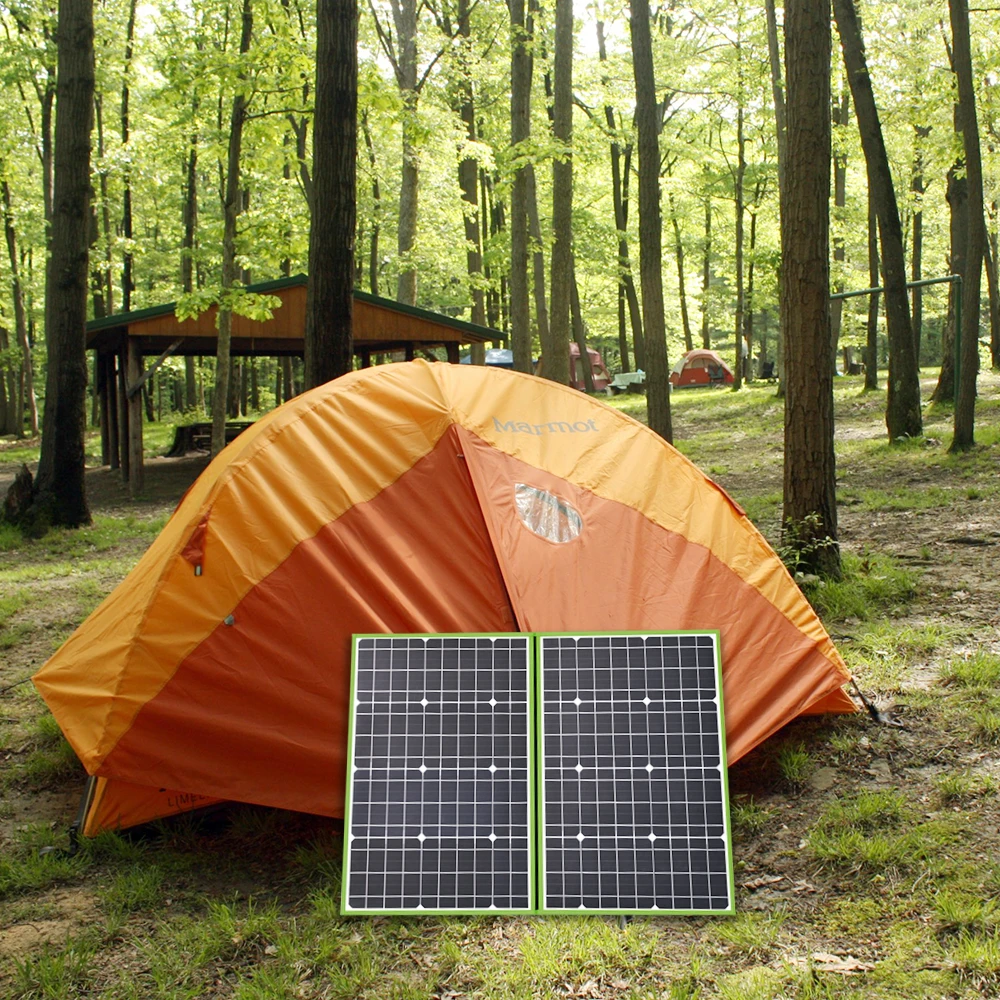

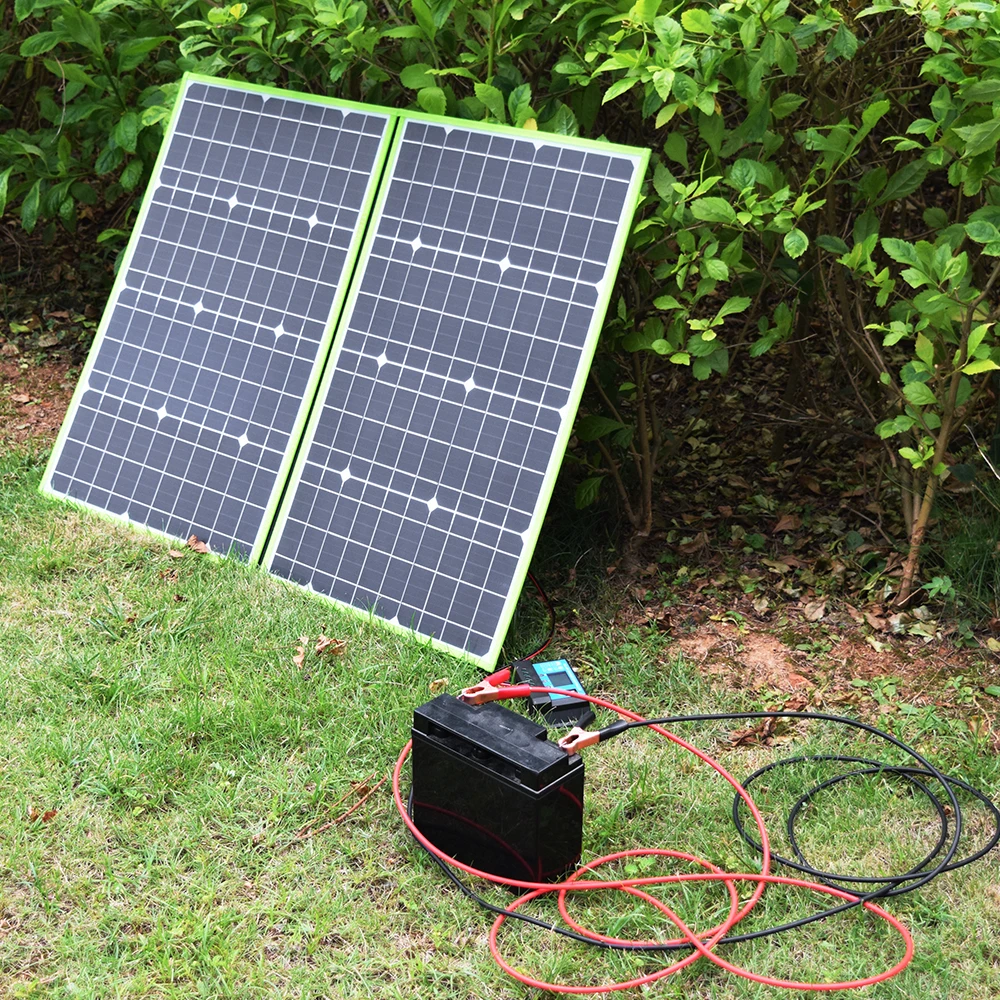

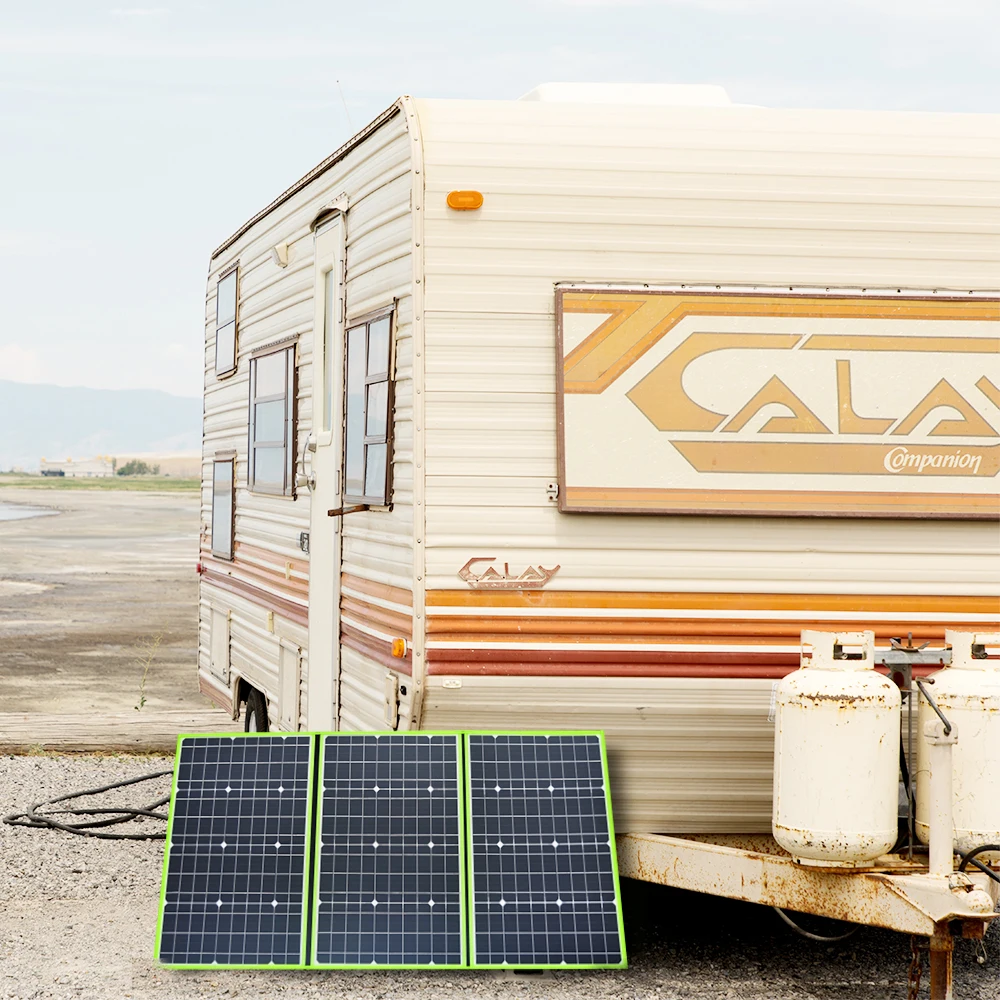

e. Easy carrying: Portable folding bag design, with controller and battery, suitable for outdoor scenes such as RV, household, camping, yacht, etc.
f. Convenience bag design: Solar portable folding charging bag with large capacity pocket for small mobile power and controller to avoid direct sunlight during charging.
Specification of 100w solar panel
Power: 100W
Working voltage: 20V
Open-circuit voltage: 24V
Maximum working current: 5A
Short circuit current: 5.5A
Working temperature: -20 ℃ ~ + 60 ℃

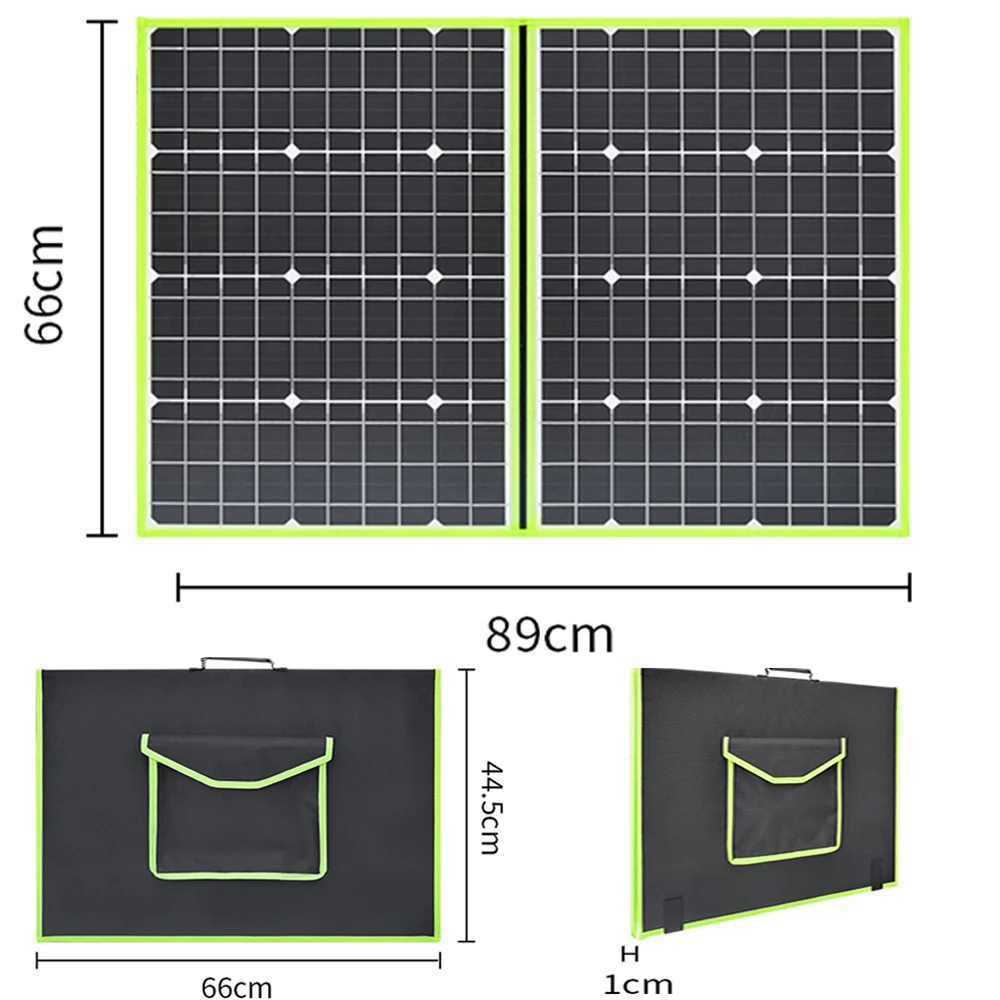

Folding size：660X445X10mm （25.9*17.5*0.4 in）
Expand Size:890X660X3mm（35*25.9*0.11 in）
Weight : 2.55kg（5.6 lb）

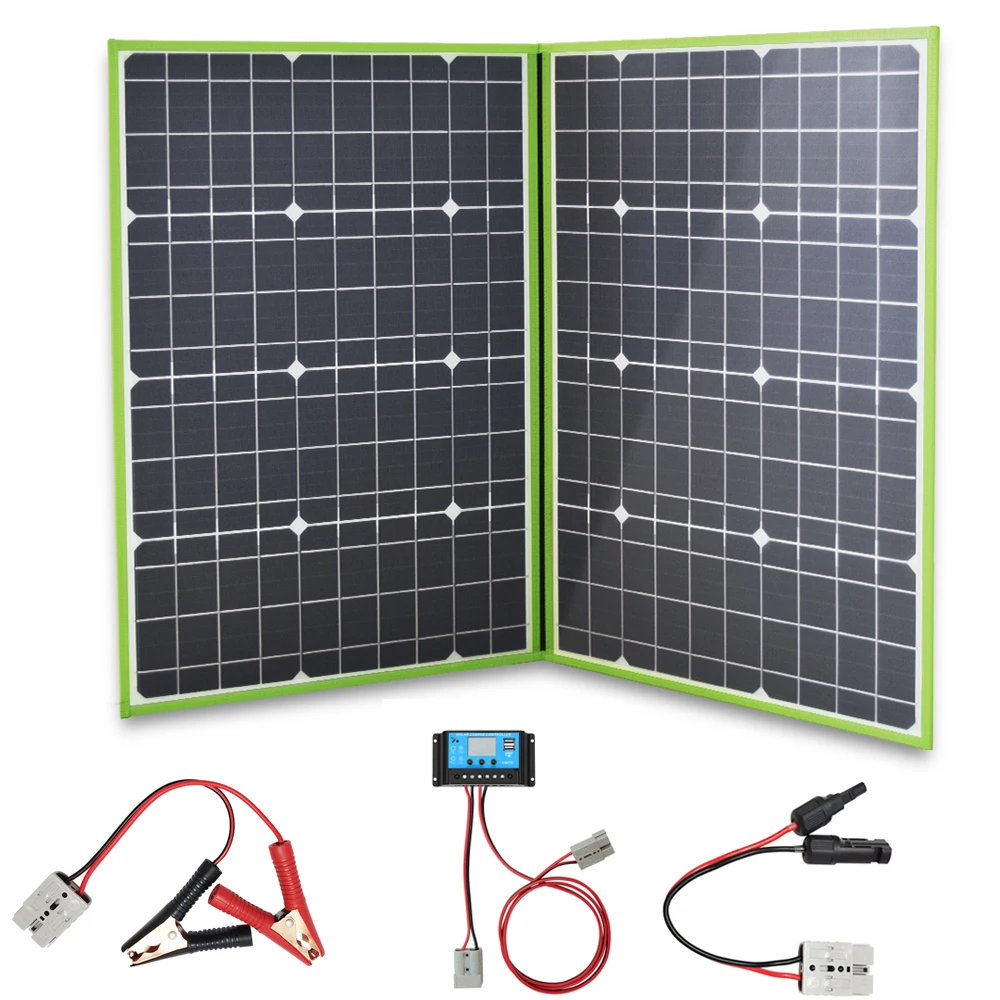

100w solar panel kit package list
1.1pcs 100W solar panel
2. 1pcs 10A controller with connector
3. 1 set cable with Adapters
4. 1 set cable with alligator clip
Specification of 150w solar panel
1. Material: Monocrystalline silicon cell;
2. Working voltage: 20V
Open circuit voltage: 24V
3. Power: 150W;
4. Maximum working current: 7.5A
Short circuit current: 9A;
5. Working temperature: -20 ℃ ~ + 60 ℃;
6. size: fold: 675*440*25mm
unfold:1320*675*4mm;
7. Weight : 4100g;
8. Belt stitching pocket with 0.5M connector cable;
150W Package list
1*150w folding solar panel
1*12V/24V 20A controller
1* alligator clips
1* connecotr cable
Specification of 200w solar panel
1. Material: Monocrystalline silicon cell;
2. Working voltage: 20V
open circuit voltage: 24V
3. Power: 200W;
4. Maximum working current: 10A
short circuit current: 12A;
5. Working temperature: -20 ℃ ~ + 60 ℃;
6. size: fold: 675*440*2.5mm
unfold:1760*675*4mm;
7. Weight : 5350g;
8. Belt stitching pocket with 0.5M connector cable;
200W Package list
1*200w folding solar panel
1*12V/24V 20A controller
1* alligator clips
1* connector cable
Specification of 300w solar panel
1. Material: Monocrystalline silicon cell;
2. Working voltage: 20V
open circuit voltage: 24V
3. Power: 300W;
4. Maximum working current: 15A
short circuit current: 16.5A;
5. Working temperature: -20 ℃ ~ + 60 ℃;
6. size: fold: 675*440*30mm
unfold:5025*880*4mm;
7. Weight : 8100g;
8. Belt stitching pocket with 0.5M connector cable;
300W Package list
1*300w folding solar panel
1*12V/24V 30A controller
1* alligator clips cable
1* connector cable
Inverter Specification
Max continuous power:600w
Peak Load Power Rate:1000w
NO load current draw: <0.6A,<0.4A
Input DC Voltage Range: DC9.7V-15.5V,20V-30V
Output Voltage Range:AC220/110+/-5%
Output Frequency Range:50+/-3HZ
Max working Temperature:<65℃
Max Power efficiency:>90%
High voltage cutoff level:15V+/-0.5V,30V+/-0.5V
Low voltage Cutoff level:10V+/-0.3V,20V+/-0.3V
Low voltage Alarm Level:11V+/-0.5V,21V+/-0.5V
Overload and Short Circuit Protection: YES
Input Voltage: DC12V,DC24V
Output Waveform:Modified sine wave
Cooling fan:Cooling fan
Product size:166.7*95*55mm
Inverter Package list
1* 110V or 220V Inverter
| Module Efficien | 21.8% |
|---|---|
| is_customized | Yes |
| Max. Power | 100W/150W/200W/300W |
| Number of Cells | 36 |
| Size | As Shown |
| Material | Monocrystalline Silicon |
| Model Number | Foldable Solar Panel Kit |
| Nominal Capacity | 100W/150W/200W/300W |
| Foldable Solar Panel | Yes |
| Flexible Solar Panel | Yes |
| Number of Panels | 4 |
| Type | Solar Panel |
| Brand Name | xinpuguang |
| Origin | Mainland China |
| Certification | CE,FCC,RoHS |
| Solar Panel Kit | Solar portable folding charging bag |
| Solar Panel | Solar Panel Kit Complete |
| Solar Panel 100W | Solar Panel 12V |
| Panel Solar | Solar Panel For Home |
| Solar System | Solar Energy |
| Panneau Solaire Kit Complet | Placa Solar |
| Solar Plate | Painel Solar |
| Energia Solar | Panneau Solaire |
| Solar Boards | Placas Solares |
| Paneles Solare | Pannello Solare |
| Zonnepaneel | Panel Solar Para Casa |
| Used For | Car Boat Camping RV Boat |
