Features:
1. High Temperature Warning Indicator in LCD display: When high temperature over 45 Celsius, the symbol of temperature will light up and show red color, plus audible alarm then shutdown.
2. Show Battery Power in LCD display: Green means full power, yellow means half level, and red means low power of your battery, you have to recharge the battery at once.
3. High Voltage warning in LCD display: (1) When high voltage warning, the symbol of v lights up(Red), battery level bar flickers, input voltage display shows 15V or more, plus audible alarm then shutdown. (2) When low voltage warning, the symbol of v lights up(Red), battery level bar flickers, input voltage display shows 10.5V or less, plus audible alarm then shutdown.
4. Power on/off indicator in LCD display: The symbol show green means working normal, show red and faulty means without output.
5. Over load & Short circuit in LCD display: When overload, the symbol ( like a balance scale) will light up(Red), load level bar flickers, no outputs audible alarm. When Short circuit warning, the symbol ( like a balance scale) will light up(Red), load level bar flickers, no outputs audible alarm.
6. Fast Charging Dual USB ports: One AC Outlets and two usb ports can offer 100% fast charging for Mobile phones, computers, laptop,breast pump, Nebulizer, Razors, fan, camera, DVD players, lights,medical rescue device,emergency equipment etc,can be as a Emergency Power Supply.
7. Multi Protection: Built-in fuses, safe charging design and cooling fan prevents the car power converter from over-heat,saving power and energy.over voltage, overload, over-current, short circuiting, under-voltage, overheating, short circuit protection.
8. Lightweight design &Top Quality: Lightweight and compact, ideal for vacations, camping and work trips. It can be plugged into almost any 12V power output vehicle, providing charging opportunities anywhere.
Specification:

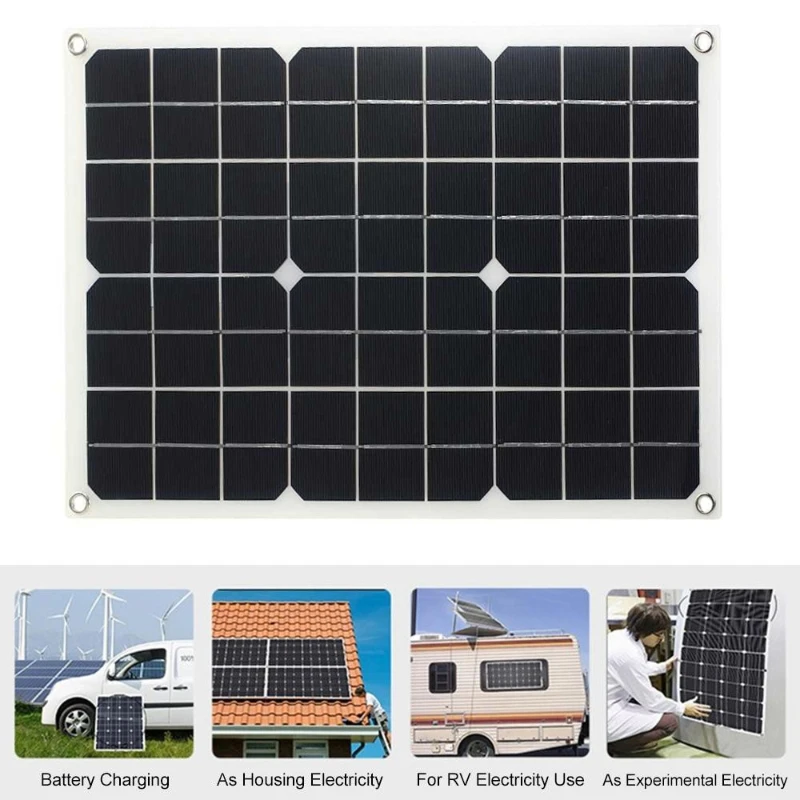

1. Solar Panel 18W:
Power: 18W± 5%
Size: 420x280x2.5mm
DC output: 12V/1.5A
USB output: 5V/1.7A
Type: Mono Solar Panel
Material: Aluminum substrate
Output accessories: DC cable + DC alligator clip
2. Power Inverter 6000W:
Input voltage: DC 10.5V~15V,
(When the battery voltage is lower than 10.5V, the inverter is low voltage protection, when the battery voltage is higher than 15V, the inverter high voltage protection)
Output voltage : AC 110V
Output frequency is: 50/60Hz
Peaks Power: 6000W/4000W
Rated power: 500W/ 300W (Please make sure that the total rated power of the connected devices is ≤ 300W /500W).
Output waveform: Modified sine wave
Product Size for inverter: 200x112x56mm
3. 30A 12V 24V Automatic Solar Charge Controller PWM with LCD Controller and Dual USB
Charge Current: 30A
Product Size: 148.5x78x35mm
Voltage: DC 12V / 24V Auto intelligent conversion
Display: LCD digital display
USB Charger Ports: Dual USB 5V 2.1A
Operating Temperature: -35~+60
Max Solar Input: 12V battery, the highest 23V
Float Charge: 13.7V (default, adjustable)
Discharge Stop: 10.7V (default, adjustable)
Discharge Reconnect: 12.6V (default, adjustable)
Charge Reconnect: 13V
Voltage of Open Light: Solar Panel 8V (Light lights delay)
Voltage of Close Light: Solar Panel 8V (Light off delay)
USB Output: 2 way USB output, 5V/2.5A (MAX)
Packing included:
1 x Power Inverter
2 x Battery Clip
1 x Cigarette Lighter Plug(gift)
1 x 18W 18V Solar Panel+DC cable + DC alligator clip
1 x Solar Charge Controller 30A 12V/24V
1 x User Manual
Note:
1. Please allow 1-3cm (0.4-1.18″) difference due to manual measurement and slight color variation for different display setting.
2. Due to the light and screen difference, the item’s color may be slightly different from the pictures. Please understand.
